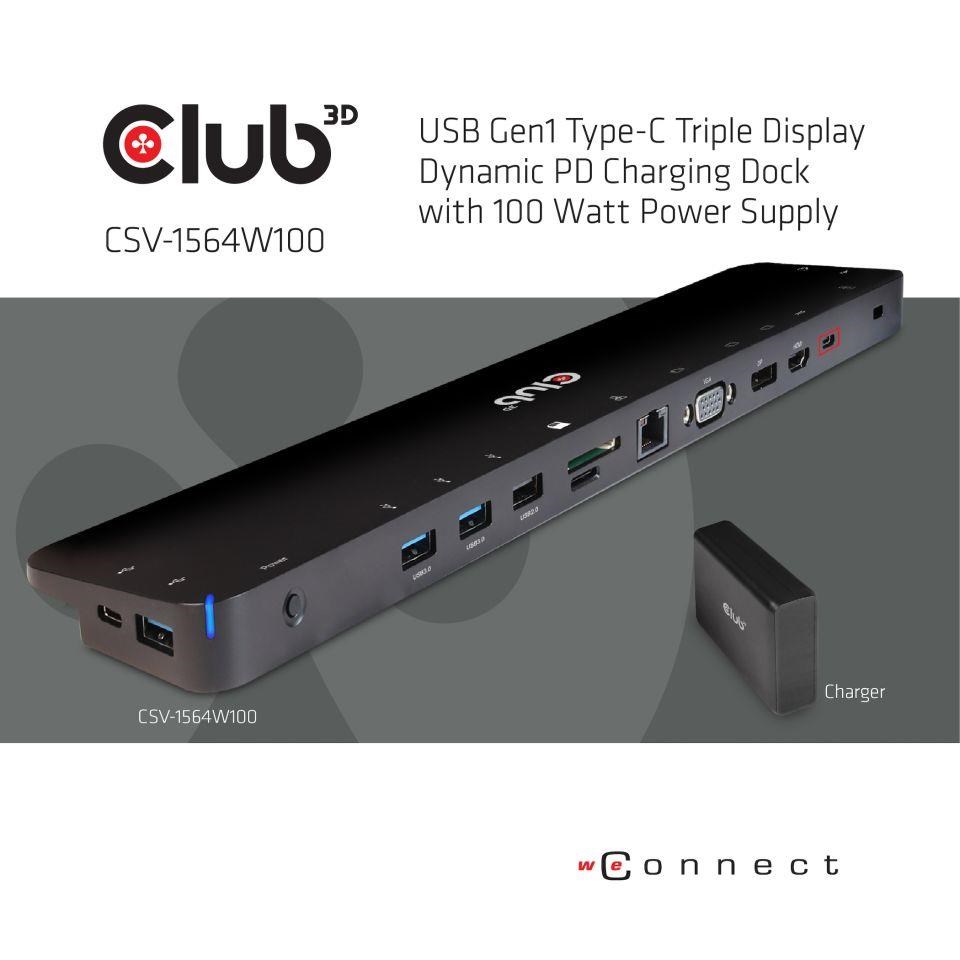

USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power charger
CSV-1564W100 - The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply.
So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, Laptop, Mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
- Supports DP Alt Mode and PD 3.0
- Supports max. 5Gbps data transmission on the USB 3.2 Gen1 Type C ports
- One USB 3.2 Gen1 Type C Data port

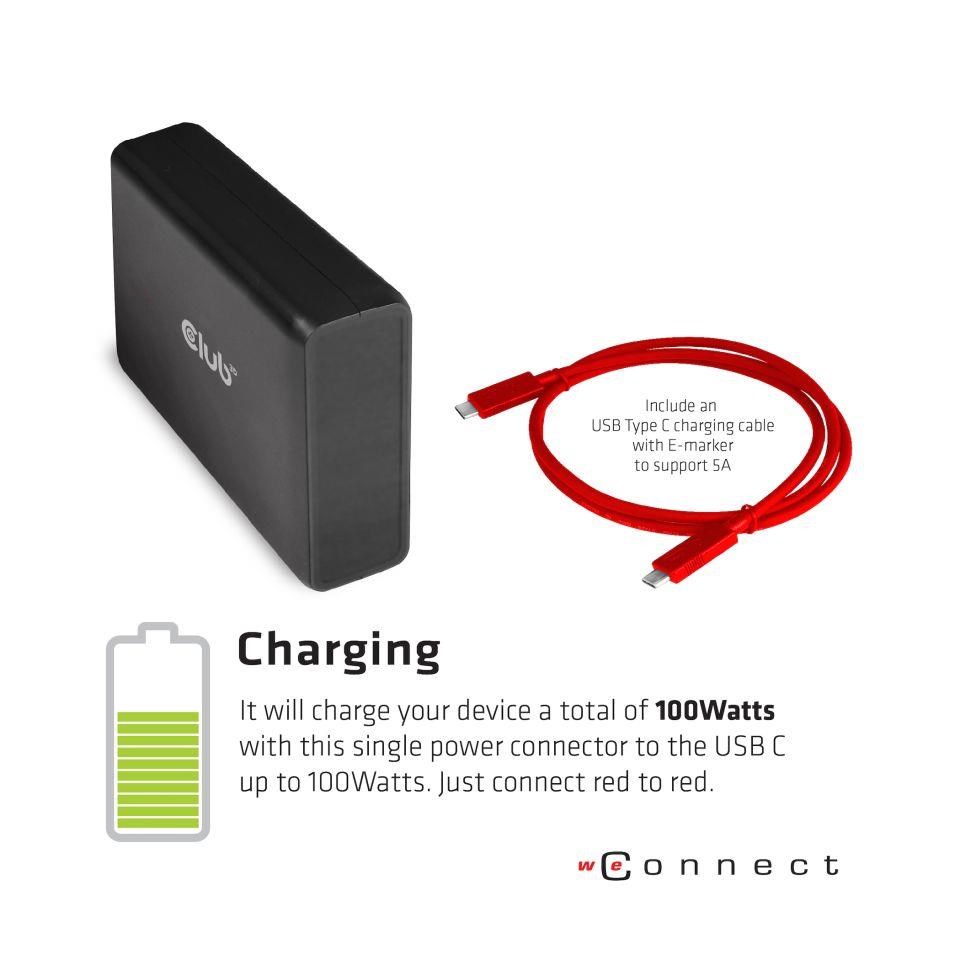

- One USB 3.2 Gen1 Type C port supports PD charging with max 100W (20V/5A) Bundled with 100W Power Supply (for Notebooks with current consumption up to 100W)
- HDMI™ max. 4K30 Hz
- DP™ max. 4K30 Hz
- VGA max. 1920x1200 60Hz
TECHNICAL SPECIFICATIONS
| Product Name | USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power charger |
| Product Series | Docking Station |
| Itemcode | CSV-1564W100 |
| EAN code | 8719214471866 |
| UPC code | 841615101849 |
| OS Support | - Microsoft Windows® 10 - Mac OSX® Supports SST mode Only |

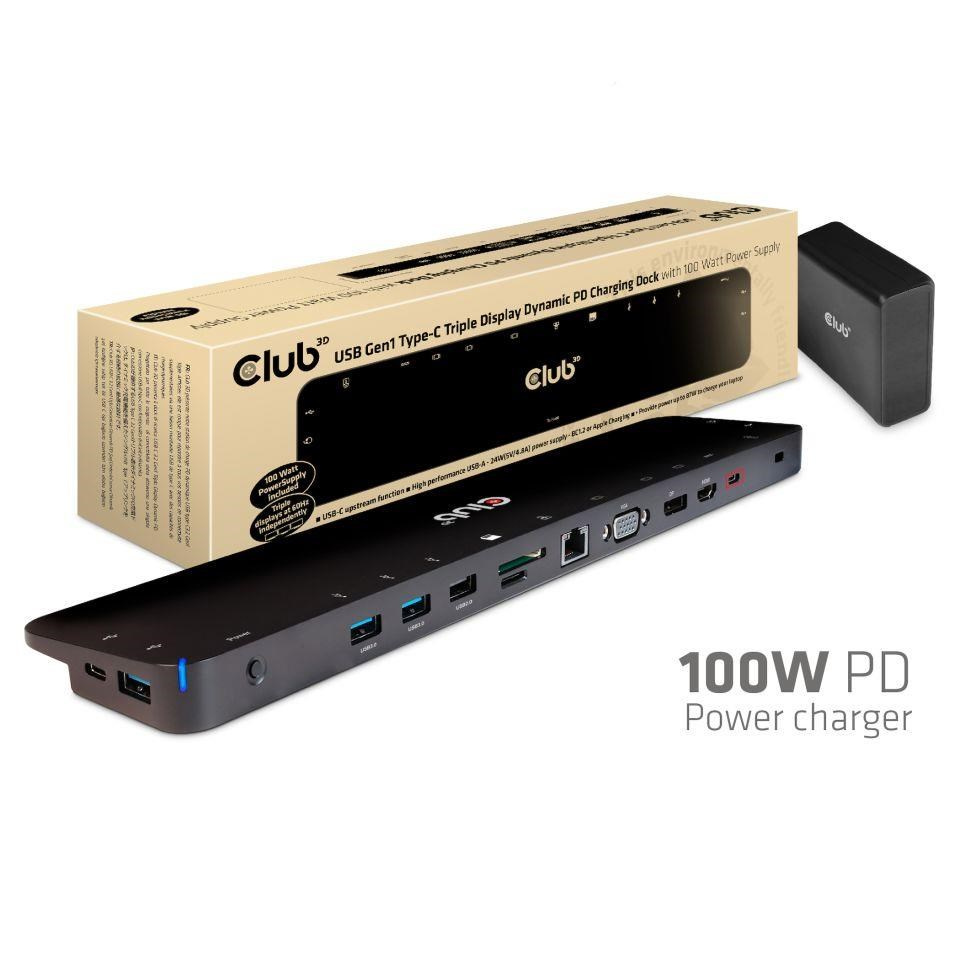

| In the box | - CSV-1564 Docking Station - PowerSupply 100 Watt - 2x USB Type C cable, 1x connection to Host (27cm / 0.886ft, 1x RED cable USB type C for charging to PowerSupply 1 m / 3.28 ft - Quick Install Guide |

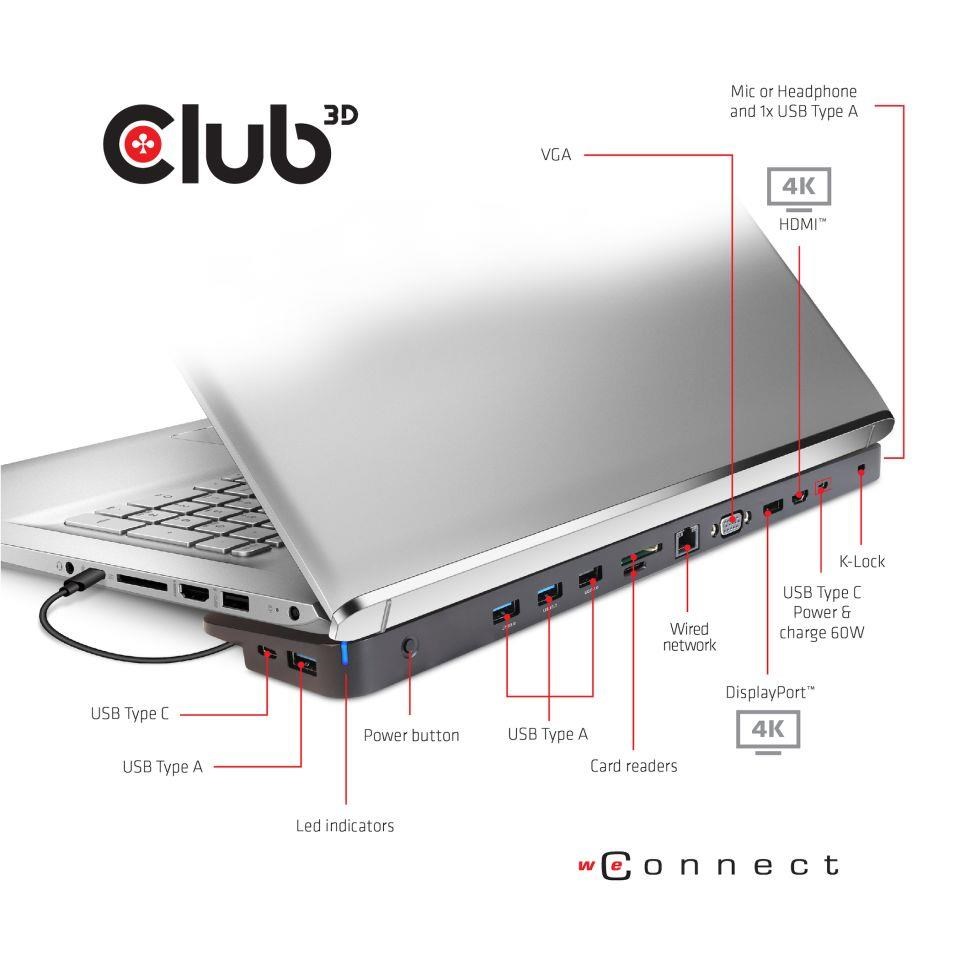

| Available Interfaces | 3x USB 3.2 Gen1 Type C Female (1 for Data, 1 for PD charging, 1 for connecting to Host) 3x USB 3.0 Type A female 2x USB 2.0 Type A female 1x HDMI™ female 1x DisplayPort™ female 1x VGA female 1x RJ45 jack 1x SD slot 1x Micro SD slot 1x 3.5mm Stereo jack(Headphone/Mic) |
| Box size | 36.7 x 7.9 x 10.9 cm / 14.45 x 3.1 x 4.29 inch |

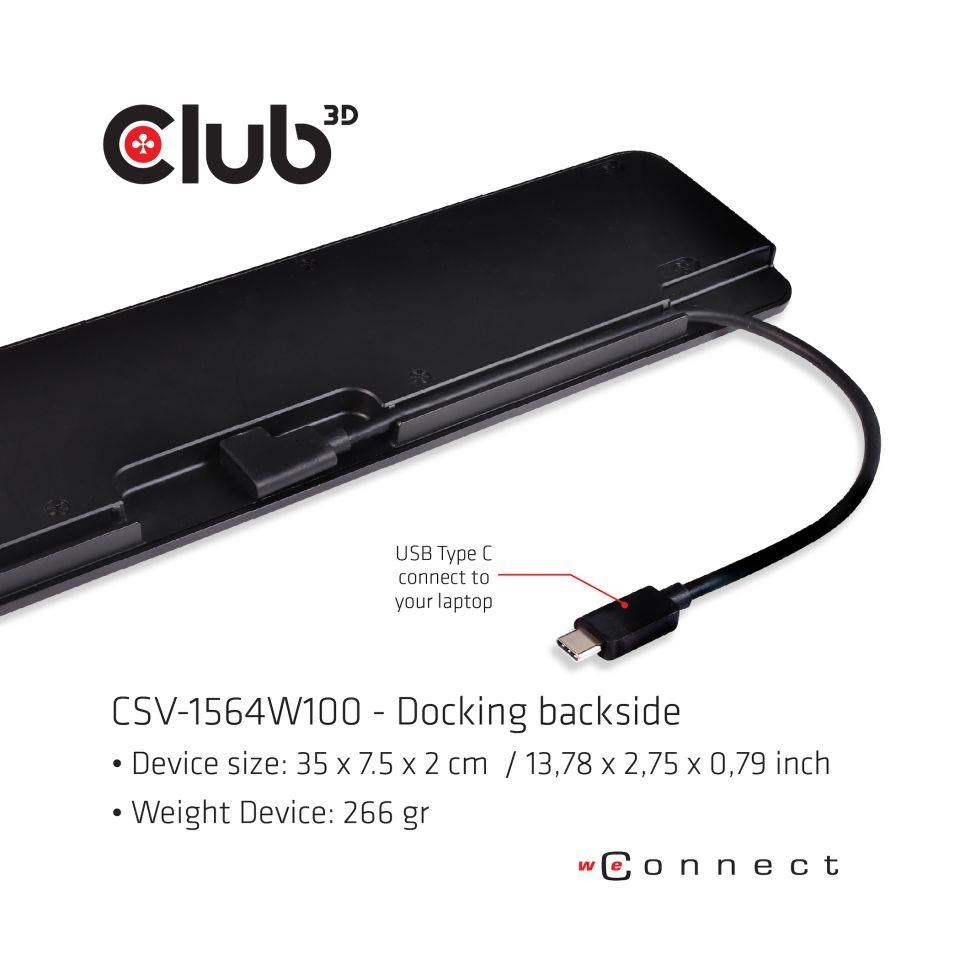

| Device size | 35 x 7.5 x 2 cm / 13.78 x 2.95 x 0.79 inch |
| Device Weight | depending on power plug = 250 gr. / 8.82oz |
| USB-C cable Weight | 35 gr. / 1.2 oz |
| Box Weight | 239 gr. / 8.43 oz |
| Power supply weight | depending on power plug = 425 gr. / 14.99 oz. |
| Total Weight | depending on power plug = 949 gr./ 33.425 oz |
